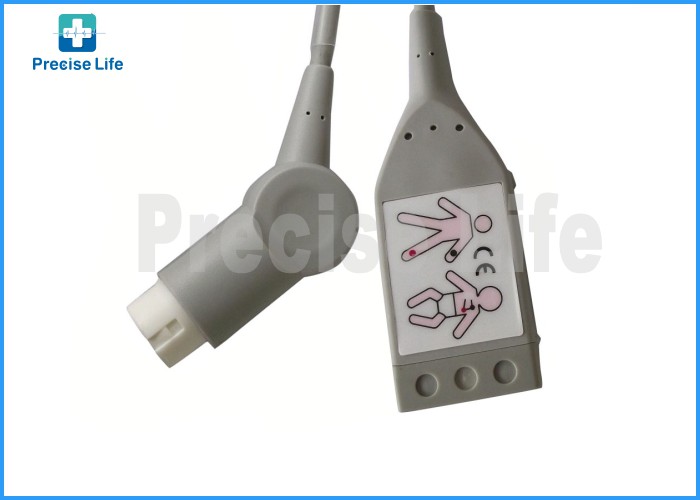

Ph Patient monitor M1510A ECG cable 3 leads with 12 connector AHA color code 8 ft TPU cable
Description:
The M1510A ECG cable connect with lead wire comaptible with: Instruments with 12-Pin Connector: 78352C,7834C, 78834C,M1001A/B, M1002A/B, M1722A/B,M1723A/B, M2475B, M3000A,M3001A, M4735A,VM4/V24... ...ect. ECG cable is the necessary part of the patient monitor,the high quality could be more stable,and save a lot of cost for replace new ECG cable. And also effect the performance of the monitor.
Specification:
| Reference OEM part number:M1510A |
| Biocompatibility:All patient contact materials are latex free and have been tested according to ISO 10993-5, ISO 10993-10 |
| Humidity: Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
| Storage and Transport Environment: -10°C~+40°C |
| Operating Temperature: +5°C~+40°C |
| Material: TPU cable, gold plated pin |
| Color Code:AHA |
| Leads:5 leads |
| Length: 2.4 meters |
| Packing: 1 piece per bag |
| MOQ: 1 piece |
| Warranty: 6 months |
| OEM service: Available |
| Delivery date: 1 to 7 days |
Reference OEM P/N:
43385 (3 Leads)
4535-612-33921 (3 Leads)
M1500A (3 Leads)
M1510A (3 Leads)
M1540C (3 Leads)
M1520A (5 Leads)
M1560C (5 Leads)
Advance:
Replacement Sample ECG cable with high quality compare to original up 90%~100%,but with reasonable cost save price about 10%~30% compare to original.
Help you save the additional cost with acceptable high quality. No need a huge budget for a new original.
Note: All brands name above for reference only!
